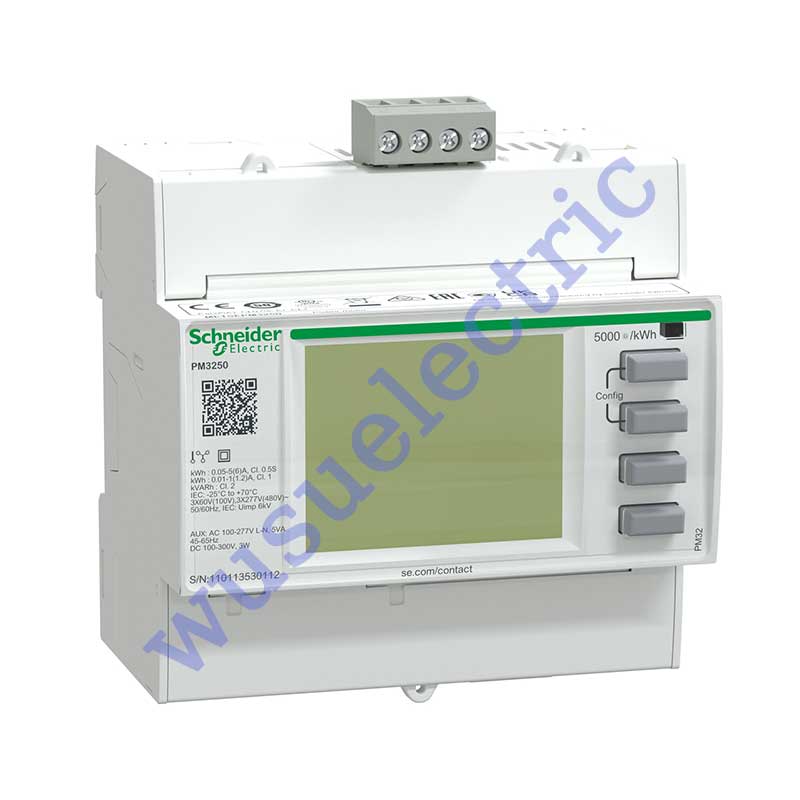

Schneider METSEPM3250 power meter

• Model: PM3250 DIN-mount Energy Meter
• Display: 128 × 96 backlit LCD
• Accuracy Class: Class 0.5S (IEC 62053-22)
• Sampling Rate: 32 samples per cycle
• Measured Parameters: Energy, Active/Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power, THD, up to 15th Harmonic
• Frequency: 50Hz / 60Hz
• Supply Voltage: 100–277VAC / 173–480VAC / 100–300VDC
• Line Rated Current: 1A / 5A
• Direct Voltage Measurement Range: 50–570VAC

PM3250 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power, Total Harmonic Distortion and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter offers event recording with up to 5 alarms. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Advantage Products

FAQ

1.Q:Other suppliers have a better price than yours?

A: ''To create the greatest benefit for clients'' is our belief, if you have a better price, please let Wusu know. We will try the best to meet your target price and support you.

2.Q:What's the delivery time ?

A: Normally we have enough stock for regular models(such as PLC FX3U-64MR/ES-A ) and we can deliver immediately at the same day after payment received. For some products that is not in stock, we normally deliver within one week.

3.Q:What is the standard of package?

A: Export standard package or special package according to customer requirement.

4.Q: Could Wusu provide technology support?

A: We're in this field for more than 15 years and we have our own technical team. Our engineer could give suggestion and help to solve the problem if there's any problem.

5.Q:Does Wusu keeps goods in stock or only trading?

A: We have warehouses in Guangzhou and HongKong and keep large stock of goods in it, that's how we promise fast delivery.

All products are covered by the Wusu Industrial Automation Company's 1 Year Warranty. Manufacturer's Warranty does not apply.

 Refund and replacement

1. Please contact us within 7 days if you have any question after you receiving the items.

2.The returned items has to be in its original condition, specific reason for the return, we will

issue a return or replacement for your order after we received the returns.

3.The buyer is responsible for all the shipping cost incurred.
